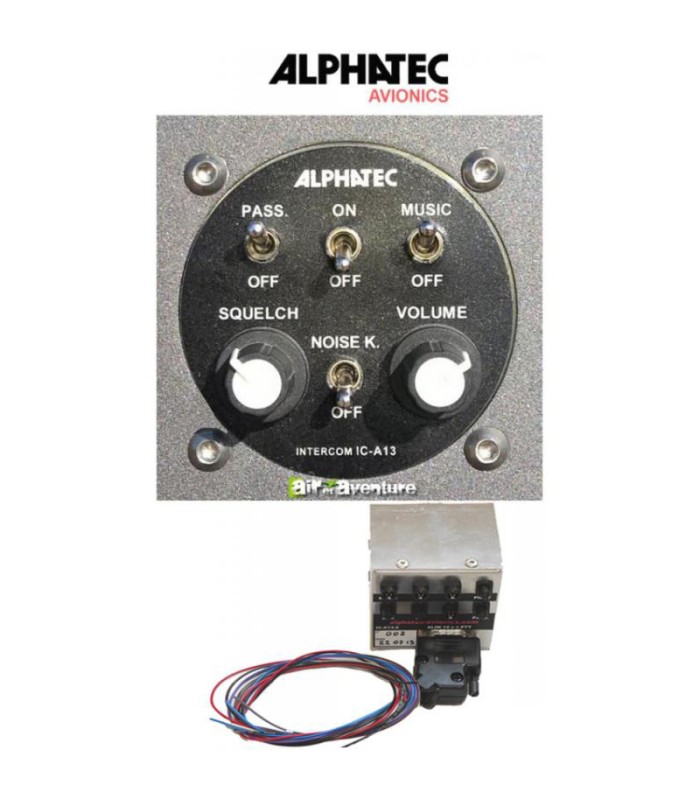

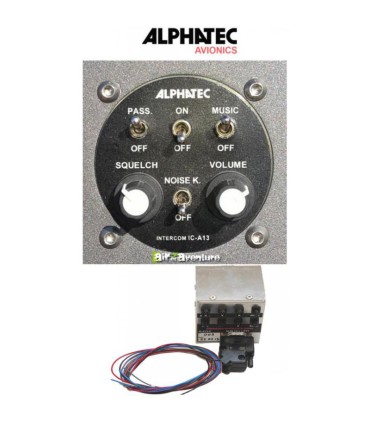

IC-A13 Radio Intercom Alphatec

A complete radio intercom

This Intercom Radio is a top-of-the-range, multi-functional model. It features the highly effective "Noise Killer NK-A13 " digital filter for machines in noisy environments.
It also complies with the civil aviation standard of dual 5.25 and 6.35 mm jacks . With its SMD (surface-mounted component) technology, it is powered by the on-board 12V.

All interfaces are connected to the rear of the case via professional 10mm-diameter snap-in sockets, with coding.

Supplied with 12V power cable on 9-pin SubD socket, with inputs for various alternates:

Pin 1: 0 Volt / ground alternates and frequency change (black wires)
Pin 2: UHF toggle (brown wire)
Pin 3: VHF toggle (purple wire)
Pin 4: VHF passenger toggle (gray wire)
Pin 5: VHF pilot toggle (white wire)
Pin 6 and 7: Line in/hook out/voice dial button (blue wires) for BT-A11 adapter sold separately
Pin 8: Not connected
Pin 9: + 12 volts (red wire)

Numerous interfaces :

- VHF aviation radio without passenger microphone attenuation

- UHF radio or 2nd VHF radio (free flight, ...)

- GSM telephone via our BTA-11 adapter sold separately

- Additional auxiliary IN/OUT or music input without automatic attenuation (music input can be completely cut off via a switch on the front panel).

• • Voice triggering and intercom volume adjustable from front panel.

• • Voice triggering can be completely disabled.

• • Connection of all interfaces on the rear of the unit via professional

• • 10mm-diameter professional plugs with coding.

• • Supplied with 12V power cable to 9-pin SubD socket.
