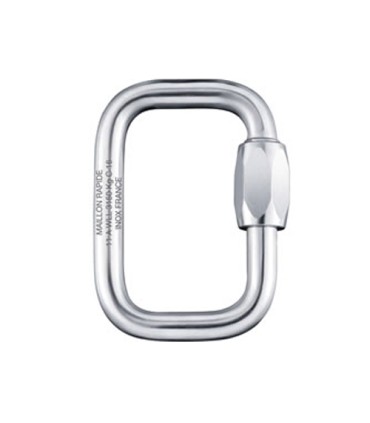

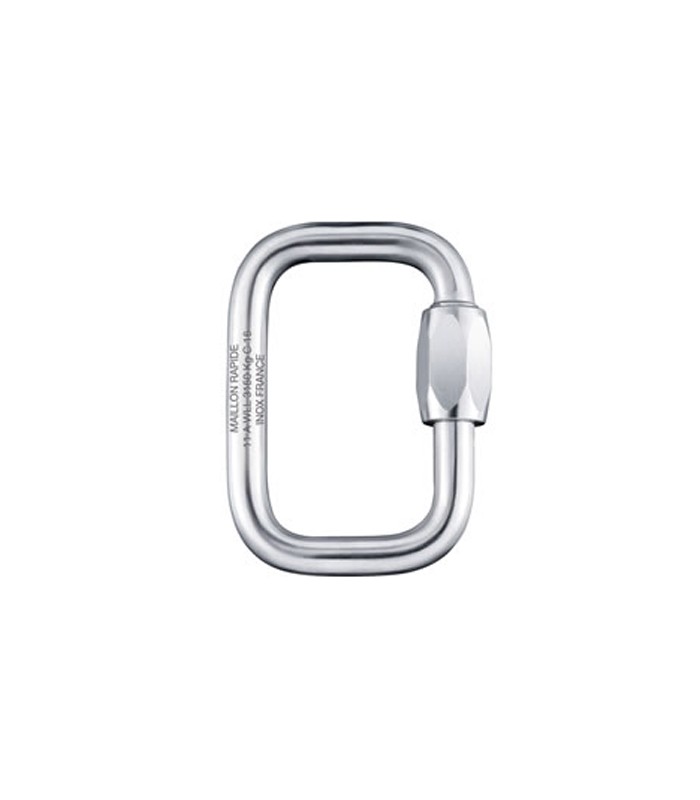

Square stainless steel 5 mm quick link

A connecting tool

Application: For accessory anchoring, suspension line/risers connection

Self-certified with Working Load

CU (WLL) : 325 kg

CR Rupture : 1625 Kg

CU (WLL) = Working Load

CU (WLL) x 5 = Rupture Load

Material

• Stainless steel 316 L - Standard X2 Cr Ni - Mo 17-12-2 (1.4404)
• Type 18/12 molybdenum steel with very low carbon content, protects against the risk of intergranular corrosion.
• Can be used in environments where type 18.10 steels are used, with the exception of environments containing nitric acid
• Molybdenum content equal to 2/2.5, enabling use in a wider range of applications than those assigned to type 18.10 steels, particularly in the presence of sulfuric acid and chloride in marine environments.

General aspect to be monitored

quick link should be carefully checked at least once a year for corrosion, deformation and wear, and for proper operation. Replace any quick link that has been used to stop a violent fall. Proceed in the same way in case of uncertainty after checking the quick link.

Tips

• The quick link can be closed by screwing on the nut by hand to guarantee optimum safety, or by tightening it with a wrench to the recommended torque, turning it into a permanent connector.Please note: no threads should be visible.
• Payload engraved on each quick link.
• All quick link connectors must be inspected visually at regular intervals. In case of doubt, it is the user's responsibility to replace it.
